Display
Screen Size
86"
Backlight Type
Direct-Type LED
Brightness (Nits)
350 cd/m²
Native Resolution
UHD: 3840 x 2160 <br>HDR10
Aspect Ratio
16:9
Contrast Ratio (typical)
1200:1
Dynamic Constrast Ratio
35000:1
Panel Life Time ( Min. )
30000 Hrs
Response Time (typical)
8 ms
Active Area (H x V)
1895 x 1066 mm
Viewing Angle
178° Vert., 178° Hor. <br>(89U/89D/89L/89R) @ CR>10
Color Value
1.07 B (10-bit)
Haze Level
8%
Refresh Rate
60 Hz
Glass Type
4 mm Tempered <br>Anti-Glare
Glass Hardness
8 Mohs
Built-in System
Mainboard Model
MB170VS
Operating System
Customized Android Pie 9.0
CPU
CA55 Quad core
GPU
Mali470 MP3
Storage
8GB EMMC
Memory
1.5GB DDR3 / 2GB Upgrade
Wired
10/100 Mbps Ethernet
WiFi
WiFi 5 (802.11 a/b/g/n/ac)
Bluetooth
BT 4.2
User Experience
Home Page
Personalized Background, <br>Home buttons, <br>Navigation bar, <br>Quick Palette
Launcher
All Apps, <br> Profile Login/Logout, <br>Quick Settings, <br>Tools, <br>Source Change
Applications
Whiteboard, <br> ScreenShare, <br>Web browser, <br>File Manager, <br> Media Player
Board Management System
Connected System for User Profile Management
USB Type-C
Data transfer: USB2.0, <br>Charging capability: 7.5W, <br>DP alternate mode: 4K video stream
Others
Over-the-Air SW Update, <br>Screen Freeze, <br>Screen Lock, <br>Dual Pen Recognition, <br>Palm Erase, <br>Annotate over Any Source

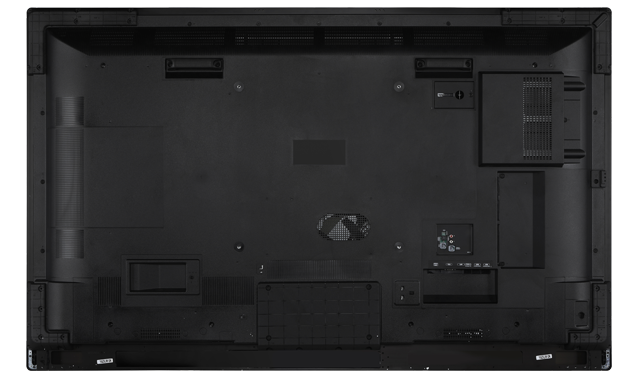

Rear I/Os
RGB Input
VGA
Video Input
4 x HDMI2.0, <br>2 x USB2.0 type-A, <br>1 x USB2.0 type-C, <br>1 x MicroSD (up to 1TB), <br>1 x Secure Slot (USB2.0), <br> 1 x OPS Slot(15W)
Video Output
1 x HDMI2.0
Audio Output
Headphone(Line-out), <br>Optic SPDIF
External Control
RS232(3.5mm jack), <br>Ethernet(RJ45), <br>Service(RJ12)
External Sensor
RJ12
Front Accessibility
Front I/Os
2 x USB2.0 Type-A, <br> 1 x USB2.0 Type-B for touch, <br>1 x HDMI2.0 Input
Console Buttons
Standby on/off <br>Volume up <br>Volume down <br>Touch enable/disable <br>Source Change, <br>Settings
IR Receiver
Fixed on bezel
Audio
2x20 W - Front Facing Speakers
Pen Holder
Integrated Magnetic Tray
Touch Interactivity
Type of Touch Technology
Infrared (IR) Technology
Continuous Touch Points
Max. 20 touch points* <br> *Bounded by application's limits
Touch Resolution
32768 x 32768 px
Sensitivity
Any touch with finger, gloved hand or pointer
Compatibility
Windows®7,Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
Response Time
< 5 ms
Touch Accuracy
+/- 1 mm (over 90% area)
Pen Type
Battery-less Pen
Pen Identities
2
Object Sizes for Touch
2.8 & 10 mm
Mechanical
Product Dimensions (WxDxH)
1962 x 1184 x 97 mm
Package Dimensions (WxDxH)
2163 x 1405 x 318 mm
Product Weight
TBD
Package Weight
TBD
Vesa Mounting
600 x 400 mm - M8
Bezel Width
B:66 | T:15 | L/R:15 mm
Environmental Conditions
Operating Temperature
+40°C / 0°C
Operating Humidity
90%
Power
Power Supply
110 VAC - 240 VAC
Features
Mechanical Features
Slim Bezel, User-Friendly Front Ports and Buttons, Detachable power cable, Carrying handles
Certification
Safety
YES
EMC
YES
CE
YES
