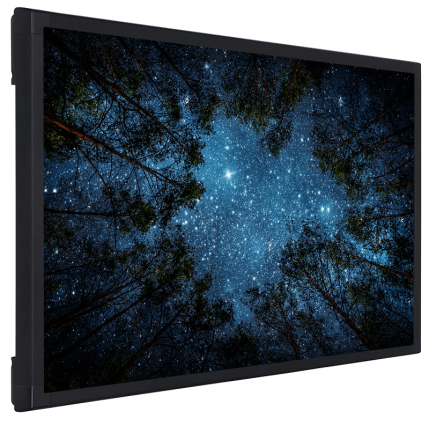

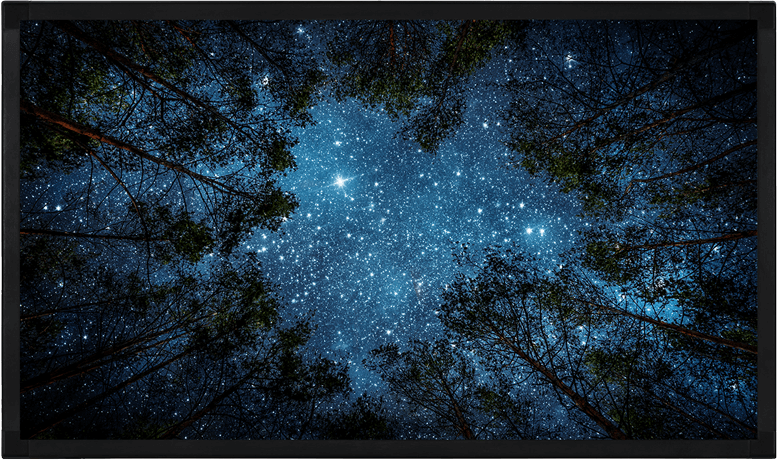

IFM Series

IFM65TH752/4

  • Resolution : 3840x2160 (UHD)
  • Brightness : 350 cd/m2
  • Touch Points : 10 Points Multi Touch
  • Touch Techology : IR Touch
  • Interface : HDMI 2.0 / VGA / USB /RS232 / RJ45 / RJ12 for sensors / IR /HP / Audio / Speaker
  • Application Area: Education
INQUIRY TO BUY
Features
Crestron Connected

Crestron Connected certification complements VESTELs presence with inside the corporate, retail, government, better training and hospitality markets, all of which use expert AV controls. As those sectors hold to evolve with growing necessities for simple-to-use merchandise, seamless integration, dependable answers and community connectivity.

Simultaneous Smooth writing Multi - Touch

10 point touch support detects multiple touch points, enhancing the possibility of collaborative work. The screens also provide a precise and user friendly writing experience with its smooth surface.

HDR10 & 4K HDMI @60Hz

Displays supporting HDR10 allows HDR based content to be shown, giving a brighter and more dynamic picture. This is further enhanced due to the support of 4K 60Hz, allowing ultra sharp, smooth Video content to be presented.

Anti Glare Tempered Glass

Prevents light reflection and provides smooth touch performance with anti glare technology. Robust design with toughened glass material to avoid any damage to the screen

Collaborate, Annotate with Oktopus

Collaborate: View lessons, respond, share annotations, and take notes using any tablet or laptop Anntate: Works over browser content & existing applications Poll: Pose questions and gain immediate participant feedback, displaying results instantly.

Commercial Datasheet Control Document Detailed Mechanical Drawing Detailed Mechanical Drawing
Specifications
Display
Screen Size 65"
Panel Technology Direct-Type LED
Backlight Type 350 cd/m²
Native Resolution UHD: 3840 x 2160 - HDR10
Contrast Ratio (typical) 1200:1
Dynamic Constrast Ratio 35000:1
Panel Life Time ( Min. ) 30000 Hrs
Response Time (typical) 9 ms
Active Area (H x V) 1428 x 804 mm
Pixel Pitch (H x V) 0.372 x 0.372 mm
PPI (pixel per inch) 68
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 1.07 B (10-bit)
Screen Treatment 2H
Haze Level 8%
Refresh Rate 60 Hz
Front Type Black Super Narrow Bezel
Orientation Horizontal
Operation Hours 16/7
Area of Usage Indoor
Built-in System
Mainboard Model 17MB135VS

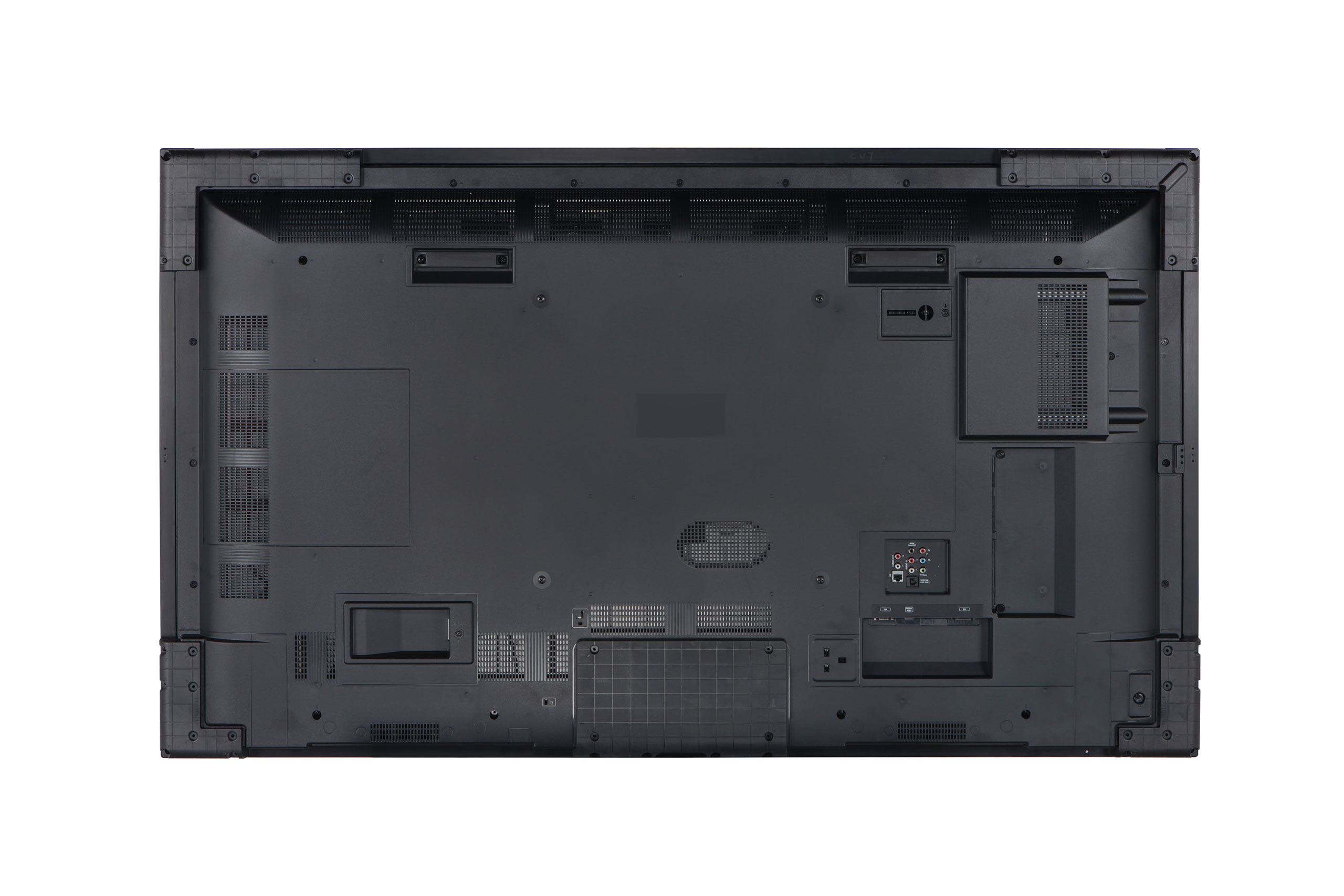

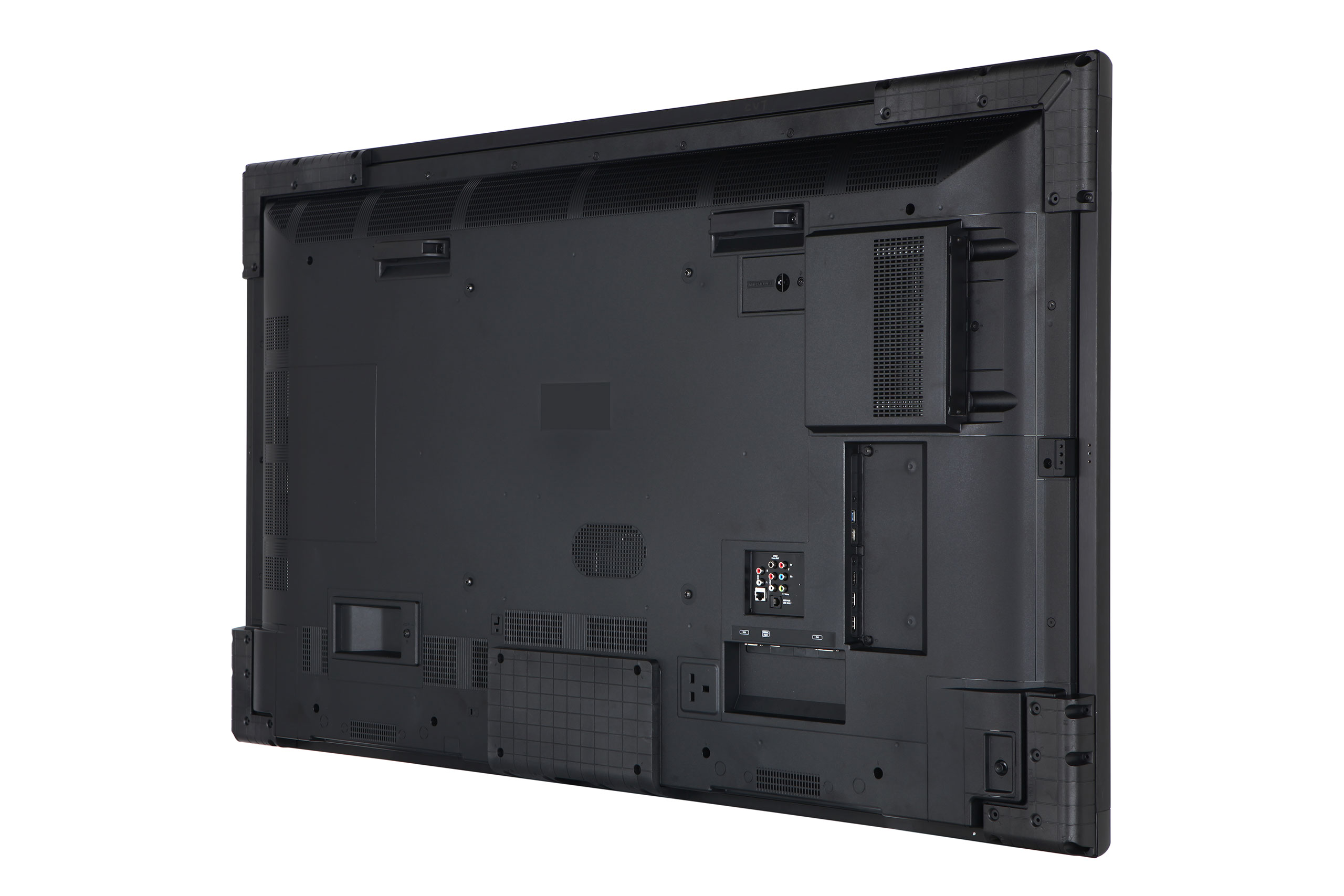

Rear I/Os
RGB Input VGA(DE-15F)
RGB Output N/A
Video Input 4xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
Video Output HDMI2.0
Audio Input Line In L/R
Audio Output Headphone, Optic SPDIF
External Control RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor RJ12
Touch Interactivity
Type of Touch Technology Infrared (IR) Technology
Continuous Touch Points 10 Points
Sensitivity Any touch with finger, gloved hand or pointer
Connectivity HID, TUIO, Flash
Compatibility Windows®7, Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Androi
Orientation Landscape Support
Calibration No need
Accuracy 90% <
Reporting Rate Up to 450 fps
Glass Type Anti Glared (AG), 4mm tempered
Frame Rate Up to 450 fps
Communication USB2.0
Power Supply Mode USB
Supply Voltage DC 5V +/- 5%
Average Current < 400 mA
Response Time < 10 ms
Touch Accuracy +/-2mm (over 90% area)
Touch Durability Unlimited
HID Compatibility Yes USB
Object Sizes for Touch 5 mm
Mechanical
Product Dimensions (WxDxH) 1507 x 118 x 882 mm
Package Dimensions (WxDxH) 1756 x 265 x 1100 mm
Product Weight 37.2 kg
Package Weight 48.3 kg
Vesa Mounting 400 x 400 mm
Bezel Width B:38| T:38 | L/R:38 mm
Environmental Conditions
Operating Temperature +40°C / 0°C
Operating Humidity 90%
Power
Power Supply 110 VAC - 240 VAC
Power Consumption
Typical 194 W
Maximum 220 W
Deep Standby ≤ 0.5W
Features
Main Features USB-Autoplay, Auto-switch on Failover, Control Button Lock, HDMI Wake-Up
Mechanical Features IR Touch, Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying handles, Detachable logo positioning, Cable Holders
Optional Features OPS Compliance
Speaker 2x8W
Accessory
Standard QSG, IB, Power Cord, Remote Control, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Certification
Safety YES
EMC YES
CE YES
Reability Approval YES
